Conditional Probability of Exceedance (CPE)

Maps of Conditional Probability of Exceedance (CPE) show the exceeding probabilistic map that ground shaking exceed a certain level of seismic intensity when scenario earthquakes occur. Maps of the expected seismic intensity show the distributions of the average value of seismic intensity when scenario earthquakes occur.

Maps of CPE are displayed by selecting the tab "CPE".

The CPE are calculated for each seismic source fault.
Select a type of fault from the box "Seismic Source Fault".
NOTE: Maps of CPE for "Occurrence Region of the Subduction-Zone Earthquakes" are not calculated.

Next, click a source fault on the map. The detailed information window and map of CPE of the selected fault appear.


Setting

Selecting reference year

You can select the reference year from the combobox on the sidebar.

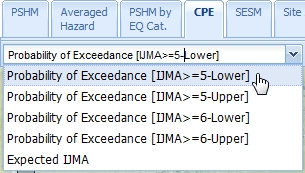

Selecting a type of map


You can select a type of map from the combobox on the toolbar.

Displaying the summary

Click and the window which shows the summary of CPE appears.
